ETHYLENE GLYCOL
PRODUCTION PROCESS
Integrated EO/EG Operations, Patent-Referenced PFD &
Procurement Scope
PROCESS BASIS Integrated ethylene oxide / ethylene glycol | AUDIENCE Process, EPC, procurement & operations | DOCUMENT STATUS Enterprise website publication draft |
|---|
Publication scope boundary This document is a technical-commercial overview. It is not a |
|---|
Prepared in accordance with the OGSCM Enterprise Refinery Process
Content Blueprint and the Process Content Revision Formula Guide. The
structure prioritizes technical accuracy, process continuity, industrial
reality, procurement intent and SEO depth.
| Document control | Value |
|---|---|
| Title | Ethylene Glycol Production Process |
| Revision | Enterprise Revision 02 - 3D Patent-Referenced PFD |
| Reference date | 13 July 2026 |
| Primary market | GCC / MENA petrochemical and industrial projects |
| Confidentiality | Internal review prior to website publication |
Content Architecture
| Section | Commercial / technical purpose |
|---|---|
| 1–4 | Process definition, operating flow, objectives and unit integration |
| 5–7 | Technology references, reaction chemistry and operational risk |
| 8–11 | Equipment, thermal systems, instrumentation and valves |
| 12–15 | Procurement scope, documentation, internal links and RFQ conversion |
| Appendices | Patent-to-PFD correlation, SEO delivery pack and source register |
Editorial principle Every process paragraph is written as: technical statement + |
|---|
1. Executive Process Overview
The ethylene glycol production process is normally integrated with an
ethylene oxide (EO) unit. Polymer-grade ethylene, oxygen, recycle gas
and a tightly controlled organic chloride moderator are fed to a
multitubular fixed-bed reactor containing a promoted silver catalyst.
The exothermic partial oxidation produces EO, while complete oxidation
forms carbon dioxide and water. Reactor heat is removed through a
dedicated cooling circuit and is commonly recovered as steam. The
EO-bearing gas is then quenched, absorbed in water and stripped to
produce a concentrated aqueous EO stream for glycol manufacture or,
where the site configuration requires it, high-purity EO derivatives.
[R1, R6]
Downstream glycol production follows one of three project-specific
routes: conventional non-catalytic thermal hydration; catalytic
conversion through ethylene carbonate; or catalytic hydration using a
heterogeneous catalyst system. The selected route determines
monoethylene glycol (MEG) selectivity, water circulation, evaporation
duty, co-product production, catalyst management and capital
configuration. Shell publicly describes conventional thermal hydration
as producing approximately 90–92% MEG with heavier glycols, while its
OMEGA route uses catalytic carbonate chemistry and reports MEG
conversion above 99% for many operators. [R1–R3]
For an industrial buyer, the critical question is not simply how
ethylene glycol is formed. It is how reactor selectivity, EO recovery,
water balance, corrosion control, heat integration, vacuum stability,
product fractionation and documentation are managed as one continuous
operating system. This page therefore connects the PFD directly to
equipment duties, operating risks, supply packages and OGSCM’s
procurement-support scope.
OGSCM positioning OGSCM is positioned as a technical-commercial sourcing and |
|---|
2. Process Operational Flow
Polymer-Grade Ethylene + Oxygen + Recycle Gas
→ Silver-Catalyst EO Reactor + Heat Recovery
→ Quench / EO Absorption → Recycle Gas Compression + CO₂ Removal
→ EO Stripping / Optional HPEO Split
→ Thermal Hydration OR Catalytic Carbonate / Catalytic Hydration
Route
→ Multiple-Effect Evaporation → Dehydration
→ Vacuum Fractionation → MEG / DEG / TEG
→ Storage, Loading and Downstream Polyester / PET / Coolant
Integration

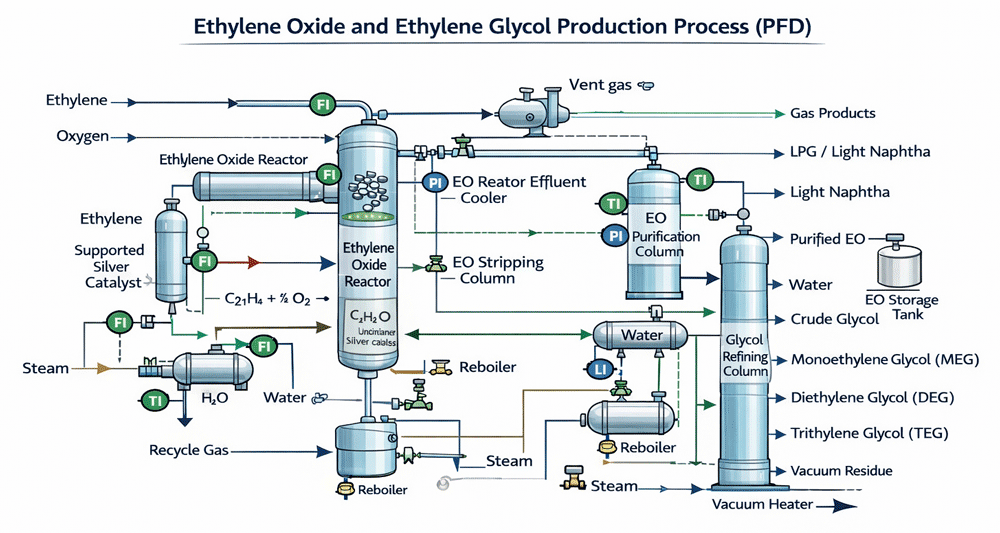

Figure 1 - OGSCM patent-referenced 3D process flow diagram for
integrated ethylene oxide and ethylene glycol production. The diagram
links feed preparation, silver-catalyst EO reaction, EO
quench/absorption, stripping and recycle-gas treatment, three
project-specific glycol-conversion routes, multiple-effect evaporation,
two-step dehydration, and MEG/DEG/TEG fractionation to public US and EP
patent anchors. It is a simplified technical-commercial representation,
not a licensor drawing or construction PFD.
| PFD stage / patent anchor | Process duty | Critical operating focus | OGSCM technical-commercial support | Indicative coverage* |
|---|---|---|---|---|
| 1. Feed mixing & recycle gas US 6,040,467 A | Meter polymer-grade ethylene, high-purity oxygen, recycle gas and organic chloride moderator into the licensed composition envelope. | O2/C2H4 ratio, inert build-up, moderator dosage, gas chromatography, compressor anti-surge and trip response. | Oxygen-clean valves, analyzers, filters, compressor auxiliaries, sampling systems, tubing and approved piping components. | 65-80% |
| 2. EO reaction & heat removal US 4,908,343 A | Partially oxidize ethylene over promoted silver catalyst in a cooled multitubular reactor while recovering reaction heat as steam. | Catalyst-bed temperature profile, selectivity, tube-side pressure drop, coolant circulation, moderator response and hotspot prevention. | Reactor thermowells, distribution components, catalyst-handling hardware, steam-system items, valves, instruments and shutdown spares. | 25-40% |
| 3. Quench & EO absorption US 7,569,710 B1 / EP 2,623,501 B1 | Cool reactor effluent and absorb EO into circulating water; remove or neutralize contaminants before glycol conversion. | Absorber temperature, pH, organic acids, aldehydes, mist removal, EO recovery, corrosion and liquid distribution. | Column internals, demisters, pumps, exchangers, pH instruments, dosing skids, corrosion-monitoring items and spares. | 60-75% |
| 4. EO stripping, CO2 removal & recycle US 9,096,564 B2 | Strip and concentrate aqueous EO, remove CO2 from EO-depleted gas, control purge and recompress the recycle stream. | Stripper steam balance, EO concentration, CO2 loading, compressor stability, purge losses, pH and recycle-gas composition. | Stripper/reboiler items, CO2-removal consumables, compressor seals and auxiliaries, analyzers, control valves and rotating spares. | 55-70% |
| 5. Conventional thermal hydration US 11,325,877 B2 | React EO with excess water without a hydration catalyst to produce MEG with controlled DEG and TEG formation. | Water-to-EO ratio, residence time, temperature, pressure, side-reaction control and downstream evaporation load. | Reactor/vessel packages, heat exchangers, water-control valves, instruments, pumps, piping items and document coordination. | 45-60% |
| 6. Carbonate / hydrolysis route EP 0,776,890 B1 | Convert EO and CO2 to ethylene carbonate and hydrolyze the carbonate to high-selectivity MEG with CO2 recycle. | Carbonation catalyst, CO2 balance, water addition, conversion, catalyst recycle, impurity purge and materials compatibility. | Catalyst and chemical sourcing, reactors/internals, dosing systems, analyzers, valves, pumps, exchangers and documentation. | 45-60% |
| 7. Catalytic hydration option US 10,807,929 B2 | Use staged ion-exchange-resin reactors, split EO injection and interstage cooling to improve MEG selectivity. | Resin condition, temperature limit, EO distribution, pressure drop, water quality, catalyst protection and change-out strategy. | Qualified resin supply, vessels/internals, distributors, interstage coolers, filters, sampling, valves and loading support. | 35-50% |
| 8. Multiple-effect evaporation US 11,325,877 B2 | Remove reaction water in successive effects, recover condensate and recycle water to the selected glycol-conversion route. | Steam economy, fouling, condensate quality, level control, vacuum profile, heat-transfer performance and water balance. | Evaporators, exchangers, pumps, vacuum auxiliaries, condensate instruments, control valves, cleaning spares and insulation items. | 65-80% |
| 9. Atmospheric + vacuum dehydration US 11,325,877 B2 | Pre-dehydrate at non-vacuum conditions and complete drying under vacuum before glycol purification. | Vacuum reliability, reboiler duty, water content, thermal degradation, condenser load, seal integrity and carryover prevention. | Columns, packing/trays, vacuum systems, condensers, reboilers, pumps, analyzers, valves and mechanical spare packages. | 65-80% |
| 10. MEG / DEG / TEG fractionation & storage US 11,325,877 B2 | Purify MEG and separate DEG, TEG and heavy glycols; route products to protected storage and export systems. | MEG purity, moisture, aldehydes, UV transmission, color, column vacuum, reflux stability and product cross-contamination. | Column internals, pumps, analyzers, product filters, nitrogen-blanketing items, storage valves, loading equipment and documentation. | 70-85% |
*Coverage means the estimated share of non-licensed procurement,
documentation and supply-line items that could be addressable through
OGSCM or qualified partners. It does not represent process ownership,
EPC completion, installed-cost share or a performance guarantee. The
ranges must be validated against the live approved-vendor list and
project BOM before public release.
3. Process Objectives
Maximize EO selectivity and ethylene utilization while
controlling complete oxidation to CO₂ and water.Convert EO to the required glycol slate: high-MEG output, or a
planned MEG/DEG/TEG co-product mix.Maintain reactor temperature uniformity, catalyst cycle length
and stable pressure drop.Recover EO efficiently from reactor gas while managing pH,
organic acids, chlorides and absorber water quality.Reduce steam, cooling-water and wastewater intensity through
evaporation and heat-integration design.Deliver product purity, moisture, UV transmission, aldehyde and
color specifications required by the downstream user.Protect personnel and assets through oxygen-service controls,
SIS/ESD, relief, gas detection and hazardous-area compliance.Maintain procurement continuity for critical spares,
catalyst-change materials, analyzers, rotating-equipment components and
shutdown packages.
4. Petrochemical Unit
Integration
Upstream integration. The EO/EG complex depends on polymer-grade
ethylene from a steam cracker or equivalent purification train, oxygen
from an air-separation unit or pipeline, clean recycle gas compression
and stable organic chloride moderation. Feed contaminants and unstable
composition directly affect silver-catalyst selectivity and reactor
thermal behavior.
Utility integration. Reactor heat removal, boiler-feed-water quality,
steam generation, cooling-water performance, chilled-water availability,
nitrogen reliability and electrical continuity are process variables—not
peripheral utilities. A loss of cooling, circulation or analysis can
force rapid rate reduction or shutdown because EO reaction and recovery
are highly safety-sensitive.
Downstream integration. Concentrated EO may be divided between
glycols and EO derivatives such as ethoxylates, ethanolamines or glycol
ethers. MEG product is routed to polyester/PET, antifreeze and
industrial-fluid chains; DEG and TEG require dedicated storage and
commercial routing. Off-gas, purge, wastewater, heavy ends and relief
loads interface with fuel-gas, flare, wastewater-treatment and
environmental systems.
| Integrated system | Dependency on EO/EG unit | Procurement consequence |
|---|---|---|
| Ethylene cracker / feed purification | Ethylene purity and feed continuity determine catalyst performance and stable production. | Feed analyzers, filters, tie-in valves, sampling systems and turnaround spares require coordinated specification. |
| Oxygen supply / ASU | Oxygen quality, pressure and trip behavior affect reactor feed envelope and SIS logic. | Oxygen-clean components, certified valves and traceable cleaning documentation are mandatory. |
| Steam / BFW network | Reactor heat recovery and back-end evaporation depend on steam balance and water chemistry. | Exchanger, boiler, trap, valve and water-treatment packages must match plant utility conditions. |
| Cooling / refrigeration | Absorber temperature, EO condensation and vacuum systems depend on stable heat rejection. | Exchanger margins, cooling-water metallurgy, chillers and fouling control influence uptime. |
| Flare / relief / vent | EO, oxygen and combustible-gas scenarios require verified disposal and isolation logic. | Relief devices, rupture discs, ESD valves and certified documentation are safety-critical. |
| Polyester / PET or derivative plants | Product water, aldehydes, color and contaminant levels determine downstream quality. | Online/offline analyzers, clean storage and lot-level COA traceability support acceptance. |
5. Major Licensors &
Technology Providers
Publicly documented commercial technology references should be
presented precisely. The following organizations are relevant to EO/EG
technology, but their names must not be used to imply an OGSCM license,
agency or approved relationship unless supported by a separate
agreement.
| Organization / technology | Documented process scope | Relevance to this page |
|---|---|---|
| Shell Catalysts & Technologies — MASTER | Catalytic ethylene-to-EO followed by thermal hydration of EO to glycols; multiple-effect evaporation and product distillation. | Reference basis for the conventional integrated EO/EG route and MEG/DEG/TEG product slate. [R1, R3] |
| Shell Catalysts & Technologies — OMEGA | Catalytic EO production followed by catalytic conversion through ethylene carbonate to high-selectivity MEG. | Reference basis for the carbonate route, reduced higher-glycol production and lower utility intensity. [R1, R2] |
| Scientific Design Company | Publicly identifies itself as an EO/EG process-technology and catalyst developer; active patent literature covers catalytic hydration and revamp configurations. | Reference for alternative catalytic hydration, staged reactors, interstage cooling and resin-life management. [R4, R9] |
| Mitsubishi Chemical patent literature | Carbonation of EO to ethylene carbonate followed by hydrolysis and distillation. | Independent patent reference for bubble-column carbonation and high-MEG-selectivity process logic. [R8] |
| Technip Energies / major EPC contractors | Ethylene integration, FEED/EPC, utility optimization, project delivery and increasingly bio-glycol pathways. | Relevant to site integration and EPC execution, but not presented here as the owner of the conventional EO/EG routes described above. [R11] |
Technology-selection rule Catalyst, reactor configuration, control philosophy, guarantees and |
|---|
6. Catalysts, Chemicals
& Process Chemistry
EO reaction. Ethylene is partially oxidized over a promoted silver
catalyst: C₂H₄ + ½O₂ → C₂H₄O. Complete oxidation to CO₂ and water
competes with EO formation, so catalyst selectivity, temperature profile
and moderator concentration are central operating and economic
variables. Shell’s public process description places the tubular
reaction in the approximate 230–270°C range; project values remain
licensor-specific. [R1]
Conventional glycol reaction. EO is thermally hydrated with excess
water: C₂H₄O + H₂O → HO–CH₂–CH₂–OH. Excess water suppresses reaction
between EO and MEG but creates a large downstream evaporation duty. The
product contains MEG plus DEG, TEG and heavier glycols, which are
separated by evaporation, dehydration and vacuum distillation. [R1, R3,
R7]
High-selectivity carbonate route. EO reacts with CO₂ to form ethylene
carbonate; the carbonate is then hydrolyzed to MEG while releasing CO₂
for recycle. Because most MEG forms in an EO-free environment,
higher-glycol formation is strongly reduced. Catalysts may be
homogeneous alkali-metal salts or other proprietary systems, depending
on the process. [R1, R2, R6, R8]
Catalytic hydration option. Scientific Design patent literature
describes staged adiabatic reactors containing strongly basic
anion-exchange resin, EO feed splitting and interstage cooling to
control exotherm and resin swelling. This is a technology-specific
alternative, not a universal EO/EG arrangement. [R9]
| Material / catalyst | Process function | Supply and validation requirement |
|---|---|---|
| Promoted silver EO catalyst | Controls EO activity, selectivity, work rate and cycle length in the tubular reactor. | Licensor-approved only; controlled transport, storage, loading supervision, traceability and spent-catalyst handling. |
| Organic chloride moderator | Adjusts catalyst surface chemistry and reaction selectivity. | High-purity material, metered injection, compatible seals/tubing and strict inventory control. |
| Alkali / pH-control chemical | Neutralizes organic acids and maintains specified absorber/stripper conditions in applicable designs. | Concentration, impurity limits and injection point must match licensor specification; SDS/COA and dosing skid required. |
| Carbonation / hydrolysis catalyst | Promotes EO-to-ethylene-carbonate conversion and subsequent hydrolysis in high-selectivity routes. | Proprietary or approved catalyst; catalyst recovery, bleed and chloride sensitivity must be assessed. |
| Ion-exchange resin catalyst | Catalyzes liquid-phase EO hydration in selected staged-reactor designs. | Resin chemistry, swelling tolerance, temperature limit, loading method and replacement plan must be technology-approved. |
| Demineralized / process water | Reaction medium, EO absorbent and wash medium. | Low contaminant load and stable water chemistry are essential to product quality, corrosion and catalyst stability. |
| Nitrogen | Inerting, blanketing and maintenance purging. | Purity, dew point, flow capacity and emergency availability must match the plant safety basis. |
7. Industrial Risk
& Operational Reliability
| Risk | Cause | Operational impact | Primary mitigation |
|---|---|---|---|
| EO / oxygen flammable envelope | Incorrect gas composition, air ingress, analyzer failure or poor isolation. | Fire, explosion, reactor trip or major loss of containment. | Redundant oxygen analysis, SIS trips, verified purge sequences, oxygen-clean components, relief and ESD systems. |
| Reactor hot spots / selectivity loss | Catalyst aging, maldistribution, fouled tubes, moderator imbalance or cooling degradation. | Higher CO₂ formation, reduced yield, accelerated catalyst damage and thermal risk. | Multi-point temperature monitoring, cooling-circuit control, feed distribution checks and catalyst performance trending. |
| Chloride / acid corrosion | Moderator-derived chlorides, organic acids, pH drift or wet service. | Wall loss, fouling, contamination and unplanned shutdown. | pH control where specified, corrosion monitoring, chloride management, metallurgy review and controlled chemical purity. |
| Recycle-gas instability | Compressor degradation, CO₂-removal upset, inert accumulation or purge error. | Composition drift, lower throughput and reactor-operability risk. | Compressor condition monitoring, online GC, CO₂ analysis, purge control and critical-spares strategy. |
| EO absorber / stripper upset | Cooling loss, foaming, tray/packing damage, steam imbalance or lean-water contamination. | EO loss, high EO in lean water, off-spec downstream feed or overpressure. | Level/temperature control, DPT monitoring, suitable internals, antifoam only if approved, and relief verification. |
| Catalytic hydration resin damage | Excess temperature, EO exposure, impurities or irreversible swelling. | Lower conversion, rising pressure drop and shortened catalyst life. | Staged temperature control, interstage cooling, feed quality and resin inspection/replacement plan. [R9] |
| Evaporator fouling / carryover | Heavies, salts, poor water chemistry or unstable level control. | Reduced heat transfer, product contamination and steam penalty. | Demisters, level control, cleaning strategy, bleed management and exchanger performance monitoring. |
| Vacuum / fractionation instability | Air leakage, condenser underperformance, ejector or vacuum-pump failure. | Thermal degradation, color increase and off-spec MEG/DEG/TEG. | Vacuum integrity testing, condenser monitoring, pressure control and standby philosophy. |
| Product contamination | Cross-line leakage, wet tanks, corrosion products or unsuitable seals/coatings. | Failure of polyester/PET quality specifications and rejected cargo. | Dedicated clean storage, nitrogen blanketing, sampling, online/offline QC and transfer-line segregation. |
8. Main Equipment
| Equipment | Process duty | Critical components / procurement focus |
|---|---|---|
| R-101 EO reactor | Multitubular fixed-bed reactor with catalyst-filled tubes and external heat-removal medium. | Tube bundle, supports, distribution, thermowells, catalyst loading/unloading hardware; licensor-controlled design. |
| K-101 recycle-gas compressor | Maintains recycle circulation and reactor-feed pressure. | Dry-gas seals, bearings, lube-oil system, anti-surge controls, vibration probes and critical rotating spares. |
| T-101 quench / EO absorber | Cools reactor effluent and recovers EO into circulating water. | Packing/trays, distributors, demisters, quench nozzles, corrosion-monitoring points and recirculation pumps. |
| CO₂-removal section | Controls CO₂ in recycle gas and protects reactor composition. | Absorber/regenerator or proprietary package, internals, solvent system, exchangers, filters and analyzers. |
| T-102 EO stripper / optional finishing | Recovers concentrated EO from fat absorbent and returns lean water. | Trays/packing, reboiler, condenser, reflux, EO-compatible valves, relief and analyzer points. |
| R-201 / R-202 / R-203 glycol reactors | Thermal hydration, carbonation/hydrolysis or catalytic hydration according to technology. | Reactor vessel, internals, catalyst support, feed distribution, interstage coolers and residual-EO control. |
| E-201 multiple-effect evaporators | Recover reaction water and concentrate mixed glycols. | Evaporator bodies, separators, demisters, condensers, pumps and cleaning provisions. |
| T-201/T-202 dehydration columns | Remove water before glycol fractionation and recover useful low-pressure steam where designed. | Packing/trays, reboilers, condensers, vacuum equipment and moisture analysis. |
| T-203/T-204/T-205 glycol columns | Separate MEG, DEG, TEG and heavy ends under vacuum. | High-efficiency internals, reboilers, condensers, vacuum seals, product pumps and analyzers. |
| Storage / loading systems | Preserve product cleanliness and transfer finished glycols. | Tanks, nitrogen blanketing, circulation, filtration, loading arms, metering and sampling. |
Vendor selection must follow the project approved-vendor list,
licensor specifications, applicable pressure-vessel and piping codes,
material selection report, hazardous-area classification and mechanical
data sheets. OGSCM support may include RFQ package preparation, vendor
identification, technical-bid coordination, inspection, expediting,
spare-parts sourcing and document control.
9. Heat Exchangers &
Thermal Systems
The EO reactor isothermal behavior is maintained by transferring
reaction heat from catalyst tubes to a circulating heat-removal medium.
This duty is directly linked to selectivity and safety; it is not simply
an energy-recovery opportunity. Downstream, absorber coolers and EO
condensers control recovery, while glycol reactors, evaporators,
dehydrators, reboilers and vacuum-column condensers determine steam
economy and product quality.
Patent literature describes improved back-end energy integration
using multiple-effect evaporation followed by atmospheric-pressure
pre-dehydration and final vacuum dehydration. Low-pressure steam
recovered from the first dehydrator can be reused by low-pressure
consumers, reducing external steam demand in an integrated EO/EG plant.
[R10]
| Thermal service | Operational purpose | Procurement checks |
|---|---|---|
| EO reactor heat removal / steam generation | Control bed temperature and recover high-value heat. | Tube-side/shell-side design basis, water chemistry, circulation reliability, relief, inspection and fouling allowance. |
| Feed / effluent and absorber cooling | Maintain gas and liquid temperatures required for EO recovery and stable recycle. | Approach temperature, cooling-water quality, metallurgy, vibration and cleanability. |
| Glycol reactor heating / interstage cooling | Maintain hydration or carbonation temperature and control exotherm. | Catalyst temperature limit, control-valve rangeability, bypass and exchanger duty margin. |
| Multiple-effect evaporation | Recover water with reduced steam consumption. | Effect pressure balance, demisting, entrainment control, fouling, tube cleaning and pump NPSH. |
| Dehydration and vacuum fractionation | Remove residual water and separate glycols without excessive thermal degradation. | Low-pressure-drop internals, vacuum integrity, reboiler film temperature, condenser capacity and startup turndown. |
Typical supplier categories include shell-and-tube exchanger
manufacturers, plate heat-exchanger suppliers where service permits,
evaporator specialists, vacuum-system vendors, column-internals
manufacturers and OEM spare-part providers. Brand acceptance remains
project-specific.
10. Instrumentation &
Process Control
| Tag / system | Measured variable / location | Operational purpose |
|---|---|---|
| PT / PI | Reactor, compressor, absorber, stripper and vacuum-system pressure. | Pressure control, trip logic, compressor protection and vacuum stability. |
| TT / multipoint reactor TEs | Catalyst-bed profile, reactor coolant, absorber and distillation temperatures. | Hot-spot detection, selectivity control and product-quality protection. |
| FT / FCV | Ethylene, oxygen, recycle gas, moderator, water, steam and product flow. | Feed-ratio control, water balance, dosage accuracy and inventory control. |
| LT / LIC | Absorber, stripper, separators, evaporators and reflux drums. | Prevent carryover, dry-out, flooding and pump cavitation. |
| DPT | Reactor bed/tube bundle, filters, packed columns and demisters. | Detect fouling, flooding, catalyst-bed restriction and internals damage. |
| O₂ analyzer | Reactor feed, recycle gas and selected purge/inerting points. | Maintain composition outside prohibited flammable/explosive conditions and initiate SIS action. |
| Online GC / gas analyzer | Ethylene, EO, CO₂, inerts and recycle-gas composition. | Track reaction performance, purge requirement and feed-envelope compliance. |
| pH / conductivity | Quench, absorber water, stripper bottoms or catalyst loop where applicable. | Corrosion mitigation, salt/chloride management and catalyst protection. |
| Moisture / product analyzer | MEG product and dehydration-column outlet. | Confirm water specification and protect polyester/PET applications. |
| SIS / ESD / fire & gas | Trips, isolation, depressurization, gas detection and emergency response. | Independent protection layers and hazardous-area safety. |
Instrumentation packages should be specified for the classified area
and process service, with required SIL capability, IECEx/ATEX
certification where applicable, wetted-material compatibility,
calibration certificates, cybersecurity requirements and DCS/SIS
integration. Common project brands may include Emerson, Yokogawa,
Honeywell, ABB, Siemens and Endress+Hauser, subject to the end-user
AVL.
11. Valves
Valve selection in an EO/EG plant is service-driven. Oxygen lines
require documented oxygen cleaning and compatible non-metallic
materials. EO and EO-rich aqueous services require low-emission,
fire-safe and material-compatible designs with controlled dead legs.
Recycle gas and compressor circuits require reliable anti-surge and
isolation performance. Vacuum and glycol-fractionation services require
tight shutoff with low pressure drop and stable control at turndown.
| Valve service | Typical valve function | Critical requirement |
|---|---|---|
| Ethylene / recycle gas | Isolation, control, compressor recycle and emergency shutdown. | Fire-safe design, fugitive-emission control, high-integrity actuators and rapid ESD response. |
| Oxygen | Isolation and flow control. | Oxygen-clean manufacturing, cleaning certificate, suitable lubricant/seals and contamination-free packaging. |
| Organic chloride moderator | Fine dosing and positive isolation. | Low-flow accuracy, corrosion compatibility, leak-tight stem/seal and double isolation where specified. |
| EO / EO-rich water | Control, isolation, relief-system isolation and drain management. | EO-compatible metallurgy/seals, minimal cavity volume, fire-safe/low-emission qualification and tracing if required. |
| Steam / condensate | Reboiler control, letdown, isolation and traps. | Erosion resistance, stable control, flashing/cavitation review and maintainability. |
| Vacuum / glycol products | Column pressure control, product routing and tank isolation. | Low leakage, clean service, compatible packing and contamination control. |
Typical manufacturers considered on international EPC projects
include Emerson/Fisher, Flowserve, Baker Hughes/Masoneilan, SLB/Cameron,
Velan, Metso/Neles, Kitz and equivalent approved vendors. OGSCM’s role
is to match the valve data sheet, material class, certification and
actuator/control requirements—not to substitute by brand name alone.
12. Procurement & Supply
Capability
OGSCM can support EO/EG projects through a process-to-package
procurement model. The procurement basis starts from the PFD and
equipment list, then maps each process block to technical data sheets,
approved manufacturers, critical spares, inspection requirements,
documentation and logistics. This prevents disconnected product selling
and aligns supply activity with plant operability.
| Capability layer | OGSCM support scope | Boundary / validation |
|---|---|---|
| Technical RFQ preparation | Consolidate data sheets, quantities, standards, service conditions, document requirements and delivery priorities. | Final process design and proprietary data remain with licensor/EPC/end user. |
| Vendor sourcing & qualification | Identify manufacturers, review experience lists, certificates, manufacturing capability and regional support. | Vendor approval is controlled by the client/EPC AVL and technical bid evaluation. |
| Technical-commercial coordination | Manage clarifications, deviations, bid tabulation inputs, alternates and lifecycle-spares discussion. | No deviation is accepted without authorized technical approval. |
| Inspection & expediting | Coordinate ITP/QAP, witness/hold points, FAT, document review, progress and shipping release. | Third-party inspection scope follows purchase order and project quality plan. |
| Logistics & packaging | Dangerous-goods coordination, export packing, preservation, ISO tank/drum/IBC handling and delivery planning. | Country rules, Incoterms, carrier acceptance and site unloading limits must be confirmed. |
| Shutdown / MRO support | Source OEM and approved equivalent spares for valves, pumps, instruments, exchangers, compressors and column internals. | Interchangeability requires tag, drawing, serial-number and material verification. |
| Long-term supply | Framework agreements, reorder planning, safety stock and document retention for recurring chemicals and spares. | Subject to consumption history, shelf life, storage and forecast accuracy. |
Indicative overall coverage Based on the scope represented in the PFD, OGSCM may be able to |
|---|
13. Industrial Packaging
& Documentation
| Supply category | Packaging / preservation | Minimum documentation |
|---|---|---|
| EO catalyst / proprietary catalyst | Moisture- and contamination-controlled drums or licensor packaging; shock/tilt control as required. | SDS, COA/certificate, batch traceability, storage instructions, loading procedure and transport classification. |
| Moderator / alkali / liquid chemicals | UN-rated drums, IBCs, ISO tanks or bulk delivery according to hazard and volume. | SDS, COA, TDS, dangerous-goods declaration, packing certificate and seal record. |
| Ion-exchange resin | Sealed drums or bags with moisture and temperature protection. | Resin type, ionic form, batch certificate, shelf life, loading/rinsing instructions and storage limits. |
| Static / rotating equipment | Seaworthy export packing, desiccants, VCI, flange protection, shaft locking and preservation. | GA drawings, data sheets, MTCs, welding/NDE records, ITP/QAP, FAT, MDR and spare-parts list. |
| Instruments / analyzers | Shock-resistant, dry and tagged export cases; preservation of sensors and calibration standards. | Calibration certificates, hazardous-area certificates, SIL data, manuals, software/firmware record and loop documents. |
| Finished MEG / DEG / TEG | Clean dedicated bulk tanker, ISO tank or approved container; nitrogen protection if specified. | COA, SDS, specification, cleanliness declaration, seal numbers, origin/export documents and traceable lot identification. |
For EPC packages, the document register may also include EN 10204
3.1/3.2 certificates as specified, pressure-test records, NDE reports,
PMI records, coating reports, preservation procedures, spare-parts
interchangeability lists, vendor drawings, data books and final
manufacturing records. Document completeness is a commercial
deliverable, not an administrative afterthought.
14. Internal Linking
Opportunities
| Recommended anchor | Target page type | Search / conversion intent |
|---|---|---|
| ethylene oxide catalyst / silver catalyst | Catalyst and process-chemistry pages | Catalyst selection, cycle length and EO selectivity |
| oxygen-service valves | Valve product / engineering page | Oxygen-clean valves, certifications and ESD duty |
| organic chloride moderator | Process-chemical page | Moderator purity, dosing and packaging |
| caustic soda / potassium hydroxide | Process-chemical page | pH control and neutralization where licensor-approved |
| ion-exchange resin catalyst | Catalyst / separation-media page | Catalytic EO hydration and resin-life management |
| heat exchangers and evaporators | Thermal equipment page | Reactor heat removal, water recovery and steam economy |
| distillation columns / packing / trays | Separation equipment page | MEG/DEG/TEG fractionation and vacuum performance |
| vacuum systems | Mechanical equipment page | Glycol dehydration and low-temperature fractionation |
| online oxygen analyzers and gas chromatography | Instrumentation page | Feed-envelope control, recycle-gas analysis and SIS protection |
| industrial pumps and compressor spares | MRO / spare-parts page | Absorbent circulation, product transfer and recycle-gas reliability |
| MEG / DEG / TEG supply | Product pages | Product specifications, packaging, logistics and RFQ |
| EPC procurement and vendor qualification | Service page | Technical RFQ, vendor approval, inspection and expediting |
Internal links should be placed where the process creates the need.
For example, link “oxygen-service valves” from the feed and safety
discussion, not from a generic list at the end. This improves semantic
coherence, user navigation and process-to-product conversion without
keyword stuffing.
15. RFQ-Oriented Technical
Support
OGSCM supports petrochemical operators, EPC contractors and
industrial procurement teams that require technically matched EO/EG
equipment, process chemicals, valves, instrumentation, thermal systems,
spare parts and documentation. Each inquiry can be reviewed against the
process block, service conditions, material class, licensor
restrictions, approved-vendor requirements, packaging and delivery
schedule.
Request an EO/EG technical-commercial review Submit the equipment tag or material description, data sheet, |
|---|
Appendix A —
Patent-to-PFD Engineering Correlation
| PFD stage / equipment | Patent anchor / assignee | Engineering correlation |
|---|---|---|
| 1 - M-101 feed mixing; K-101 recycle-gas loop | US 6,040,467 A - Praxair Technology Inc. High Purity Oxygen for Ethylene Oxide Production | Ethylene, high-purity oxygen, ballast/recycle gas mixing; catalyst-filled reactor feed; EO recovery; CO2 stripping; purge/recycle and recompression. |
| 2 - R-101 EO reactor; E-101 heat removal | US 4,908,343 A - Union Carbide Chemicals and Plastics Technology LLC Catalyst Composition for Oxidation of Ethylene to Ethylene Oxide | Promoted supported-silver EO catalyst concept. Reactor cooling and tubular-reactor context are additionally supported by US 6,040,467 A. |
| 3 - T-101 quench / absorber and residual EO recovery | US 7,569,710 B1 / EP 2,623,501 B1 - Brian Ozero Ethylene Oxide Recovery Process | Quench, water absorption, stripping/reabsorption and production of a purified aqueous EO feed suitable for glycol manufacture. |
| 4 - T-102 EO stripper; C-101 CO2 removal; K-101 recycle compressor | US 9,096,564 B2 - Shell Oil Company Processes for the Production of Ethylene Glycol | Integrated EO reactor/absorber/stripper logic, recycle-gas treatment, organic-chloride moderation and transfer of concentrated EO to glycol conversion. |
| 5 - R-201 conventional thermal hydration | US 11,325,877 B2 - Shell USA, Inc. Processes for the Production of Ethylene Oxide and Ethylene Glycol | Thermal EO hydration with excess water, formation of MEG/DEG/TEG and the associated water-removal and glycol-purification back end. |
| 6 - R-202 carbonation; R-203 ethylene-carbonate hydrolysis | EP 0,776,890 B1 - Mitsubishi Chemical Corporation Ethylene Glycol Process | EO absorption into an ethylene-carbonate/ethylene-glycol medium, carbonation to EC, hydrolysis to EG and recycle of absorption/carbonation solution. |
| 7 - R-204A/B/C catalytic hydration train | US 10,807,929 B2 - Scientific Design Company, Inc. Process for Preparing Ethylene Glycol | Series adiabatic reactors containing basic anion-exchange resin, staged EO addition and interstage cooling for high-MEG-selectivity hydration. |
| 8 - E-201A/B/C multiple-effect evaporation | US 11,325,877 B2 - Shell USA, Inc. | Multiple-effect water evaporation, condensate handling and heat integration upstream of glycol dehydration and purification. |
| 9 - T-201 atmospheric pre-dehydrator; T-202 vacuum dehydrator | US 11,325,877 B2 - Shell USA, Inc. | Two-step dehydration using a non-vacuum pre-dehydration stage followed by final vacuum drying and heat integration. |
| 10 - T-203/T-204/T-205 glycol fractionation and product storage | US 11,325,877 B2 - Shell USA, Inc. | Fractional separation and recovery of MEG, DEG, TEG and heavier glycol streams after dehydration. |
Patent references are used to support process logic and traceability.
They do not grant design rights, freedom to operate, or permission to
reproduce proprietary licensor engineering. Legal status and project
applicability must be verified separately.
Appendix B — Website SEO
Delivery Pack
| Field | Recommended value |
|---|---|
| SEO title | Ethylene Glycol Production Process | EO/EG Plant |
| H1 | Ethylene Glycol Production Process: EO Reaction, Hydration and Purification |
| URL slug | /ethylene-glycol-production-process/ |
| Meta description | Technical overview of the ethylene glycol production process, covering EO oxidation, hydrolysis routes, PFD logic, equipment, risks, purification and EPC procurement. |
| Primary keyword | ethylene glycol production process |
| Secondary keywords | ethylene oxide and ethylene glycol process; monoethylene glycol production; EO/EG plant; ethylene oxide hydrolysis; ethylene glycol purification; MEG production technology; ethylene glycol process equipment; EO/EG process licensors; ethylene glycol plant procurement |
| Search intent | Technical validation + EPC sourcing + vendor qualification + RFQ |
| Recommended schema | TechArticle + Service + BreadcrumbList; FAQPage only if visible FAQ content is added |
| Featured excerpt | An engineering-focused guide to integrated EO/EG production, including reaction routes, patent-referenced process flow, equipment duties, operating risks and procurement scope. |
Keyword placement rule: use the primary phrase in the H1, opening
paragraph, PFD caption context, one H2/H3, meta fields and closing CTA.
Secondary phrases should appear only where they describe a genuine
process or procurement entity. Do not bold every occurrence and do not
repeat a phrase merely to increase density.
Appendix C — Public
Technical Source Register
[R1] Shell Catalysts & Technologies — Ethylene
Oxide/Ethylene Glycol (EO/EG) Process Technology — Open
public source
[R2] Shell Catalysts & Technologies — OMEGA
Process — Open
public source
[R3] Shell Catalysts & Technologies — MASTER
(EO/EG) Process — Open
public source
[R4] Scientific Design Company — EO/EG Process
Technology and Catalyst Development — Open public source
[R5] SABIC — SABIC, Scientific Design and Linde
collaboration on lower-carbon EO/EG production — Open
public source
[R6] US 9,096,564 B2 - Processes for the Production of Ethylene
Glycol (Shell) - Open public
source
[R7] US 6,040,467 A - High Purity Oxygen for Ethylene Oxide
Production (Praxair Technology) - Open public
source
[R8] US 4,908,343 A - Catalyst Composition for Oxidation of Ethylene
to Ethylene Oxide (Union Carbide) - Open public
source
[R9] US 7,569,710 B1 / EP 2,623,501 B1 - Ethylene Oxide Recovery
Process (Brian Ozero) - Open public
source
[R10] EP 0,776,890 B1 - Ethylene Glycol Process (Mitsubishi Chemical)
- Open
public source
[R11] US 10,807,929 B2 - Process for Preparing Ethylene Glycol
(Scientific Design) - Open public
source
[R12] US 11,325,877 B2 - Processes for the Production of Ethylene
Oxide and Ethylene Glycol (Shell) - Open public
source
